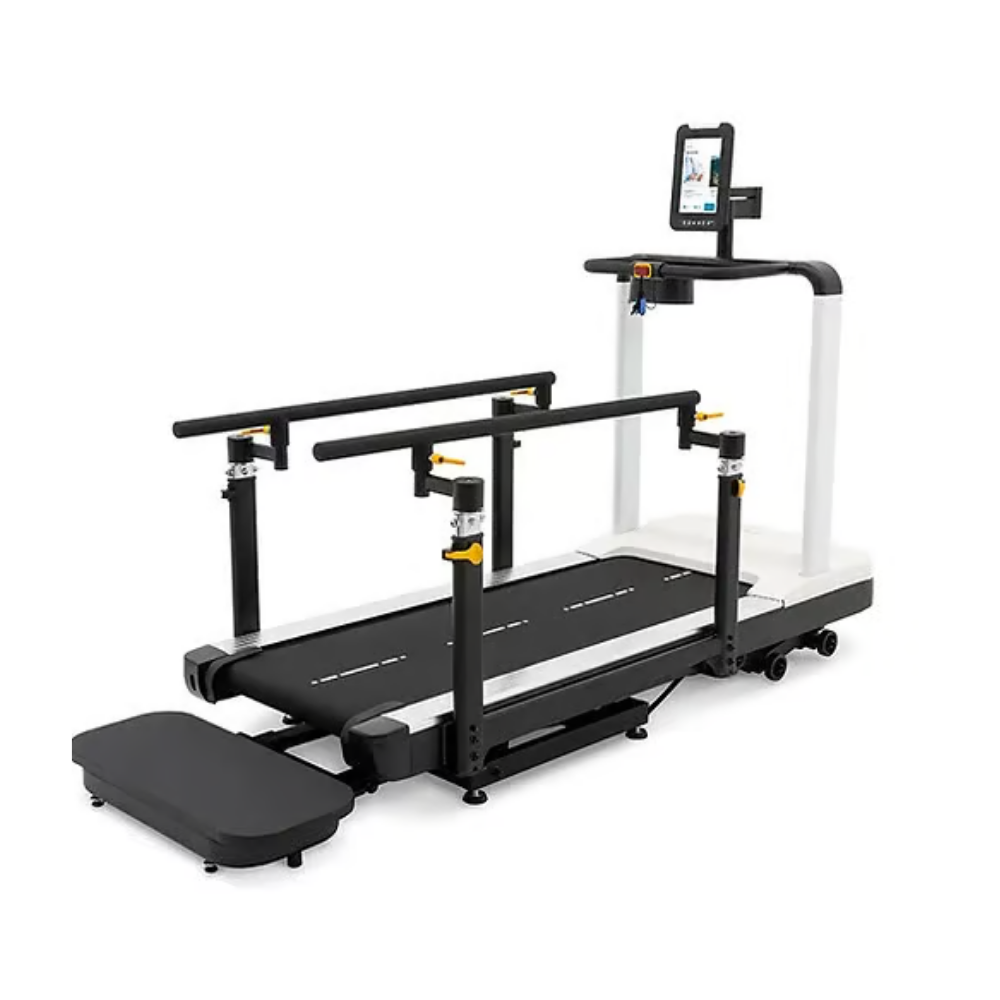

Dyaco 8.0T Rehabilitation Treadmill

The 8.0T is a state-of-the-art, neurological rehabilitation and cardiac stress testing system, packed with advanced
features such as a built-in tablet computer and cloud analytics.

Its design benefits both therapists and patients, offering the widest speed range in the market, enhancing safety
with zero-speed braking, incline and decline options, a deck-lift mechanism, and the ability to facilitate forward
and backwards walking as well as measure step length symmetry.

With Timer and Safe Step programs, gas cylinder-assisted parallel handrails, a 10” touch panel console with
multi-connectivity protocols, and a cardiac stress testing interface, The 8.0T is a comprehensive solution for any
therapeutic facility.

Timer Program
A quick set-up, large font, egg timer type display for patient warm-ups.

Symmetry
The symmetry program offers fundamental gait data along with graphical
feedback. The program quantifies both left and right step lengths and computes the symmetry index.

Safe Step
This unique program governs the motion of the belt through step detection. It
commences at zero speed and each step propels the belt at a user-defined preset
distance and speed. The belt halts upon reaching the specified distance, except when the next step is detected.

Forward and Backward Walking
The Walking belt allows walking in both directions.

Zero Speed Braking
True zero speed, when the belt is stationary the motor is locked to guarantee patient safety.

Speed and Grade
Provides the widest range of precise speeds from 0.1 to 22 km/hr (0.1 to 14 mph)
in the market. Two independent motors provide true incline and decline ramping.
It also allows for uphill and downhill walking from -12% to 25% grade.

Gas Cylinder Lift Assist Adjustable Parallel Handrails
These full-length, gas assisted handrails can be easily adjusted to ensure patient
safety and comfort throughout their rehabilitation.

Deck Lift
An exclusive attribute that enables therapists to effortlessly adjust patients’
lower extremities while maintaining an ergonomically correct seated position,
eliminating the need for bending. The Deck Lift feature also allows for the
creation of a versatile, height-adjustable plyometric platform. Additionally, it facilitates simple full-body unweighting exercises.

MED Range 8 Series

The whole new 8.0 Series comes furnished with a 10″ touch panel console, providing direct access to the Dyaco Insight cloud computing
platform for data analytics. The Beacon, positioned on top of the console, employs vividly colored lights to assess exercise intensity and
offer physical therapists an immediate visual cue regarding their patients’ advancement. The broad connection, wireless capabilities,
multiple access login, and real-time streaming data transfer are all integrated features designed to amplify therapists’ productivity and
support patients’ rehabilitation outcomes.

360-Degree Articulating Arm
This feature allows clinicians to manipulate the console from any position around the machine, ensuring both a suitable
distance and angle for optimal patient observation.

Beacon
Utilizing vibrant lights positioned atop the console, the Beacon efficiently assesses exercise intensity and provides a quick
visual signal to physical therapists regarding their patients’ progress. The Beacon can be configured to display information
such as the remaining Program Time, Power level, Exercise goals, or Heart Rate percentage.

Wireless Connectivity
With Wi-Fi, the console can connect to Dyaco Insight, two Bluetooth channels for wireless heart rate devices and
third-party apps, as well as ANT+ compatibility.

Broad Connection
The console offers versatile connectivity options, including hardwired connections for data streaming to PCs and links to
external devices like cardiac stress testing systems.

Specifications
